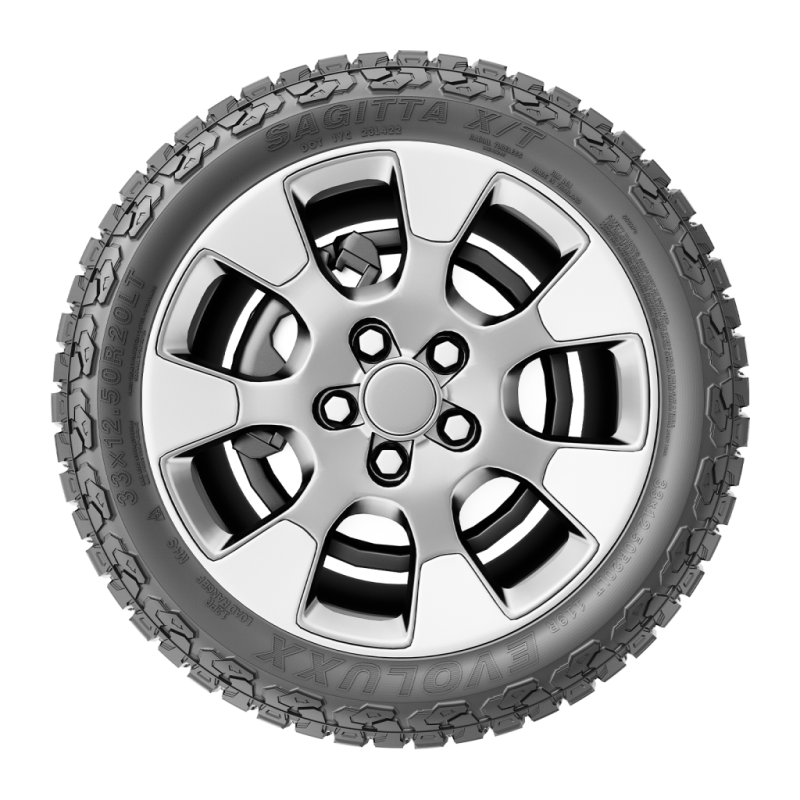

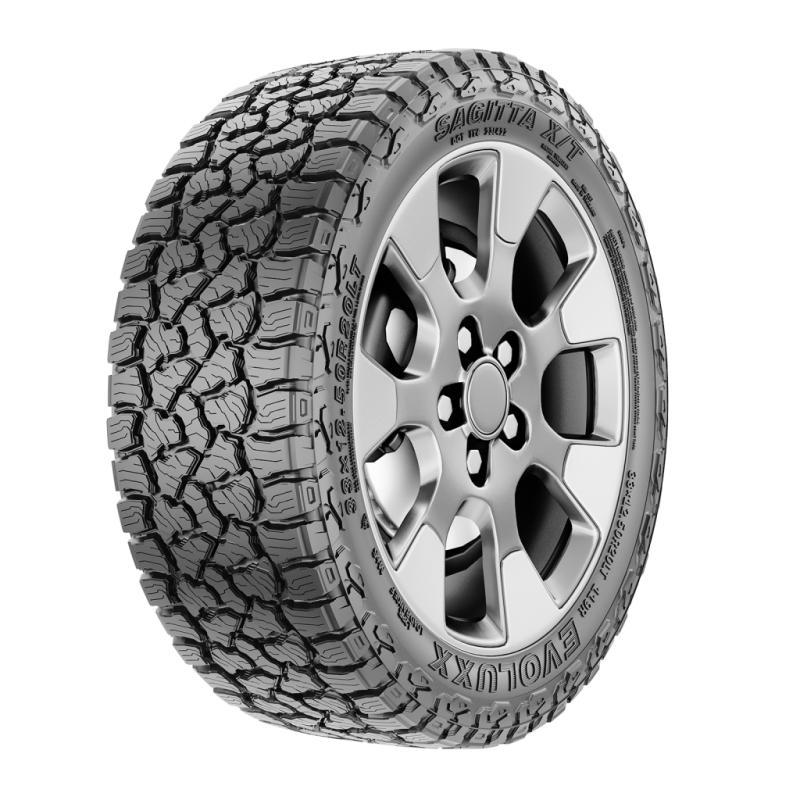

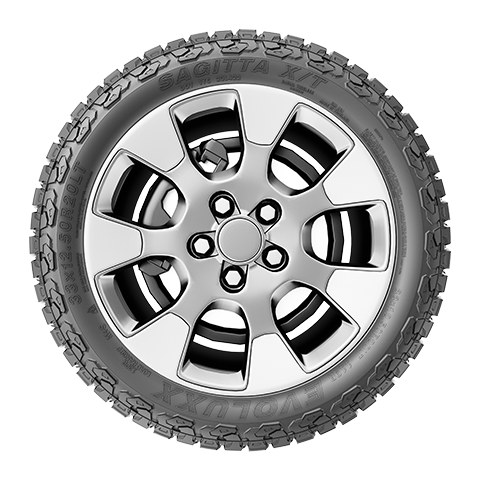

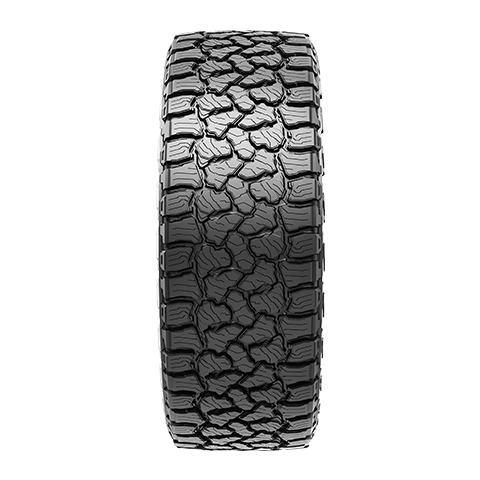

SAGITTA X/T
Extreme All-Terrain Tire
KEY FESTURES
• Reinforced Protective Structure Provides Excellent Strength and Durability
• Perfect Grip on Snowy Surfaces
• Outstanding Off-Road Traction

Reinforced Protective Structure Provides Excellent Strength and Durability
• Wide lateral grooves with stone ejectors resist stone drilling
• Specially developed tread compound improves the resistance against cuts, chips and punctures in tough  terrain
• Engineered with an integrated rim protector to help shield wheels from curb impacts and everyday road hazards


Perfect Grip on Snowy Surfaces

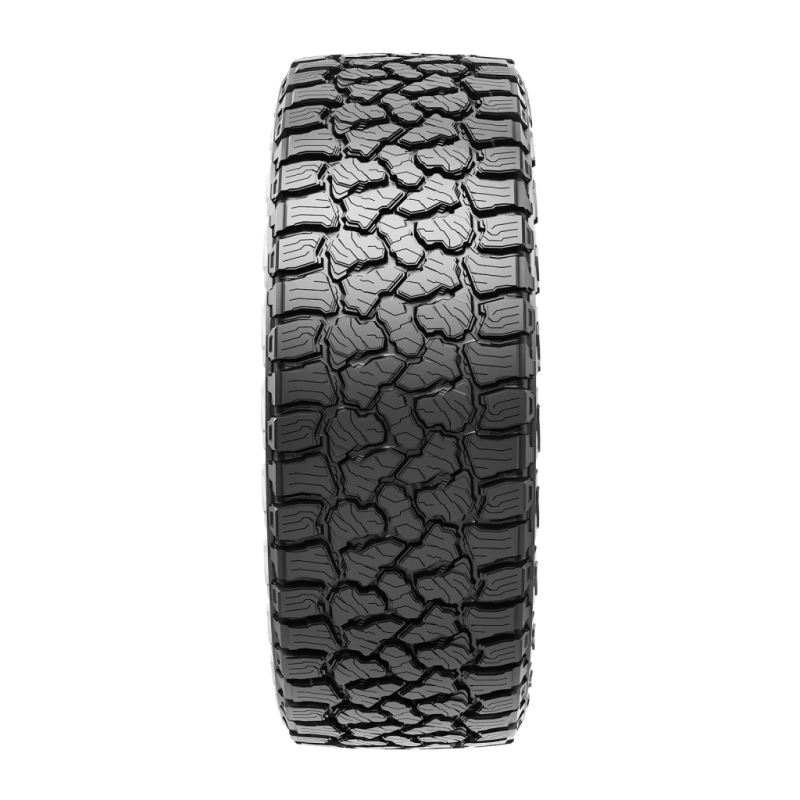

• Interlocked tread blocks with advanced compound and zigzag siping design bring excellent grip in wet and snowy road conditions


Outstanding Off-Road Traction
• The aggressive 3D sidewall design delivers extra sidewall protection in tough terrain especially with gravels and rocks, thus increases the adaptability on different surfaces

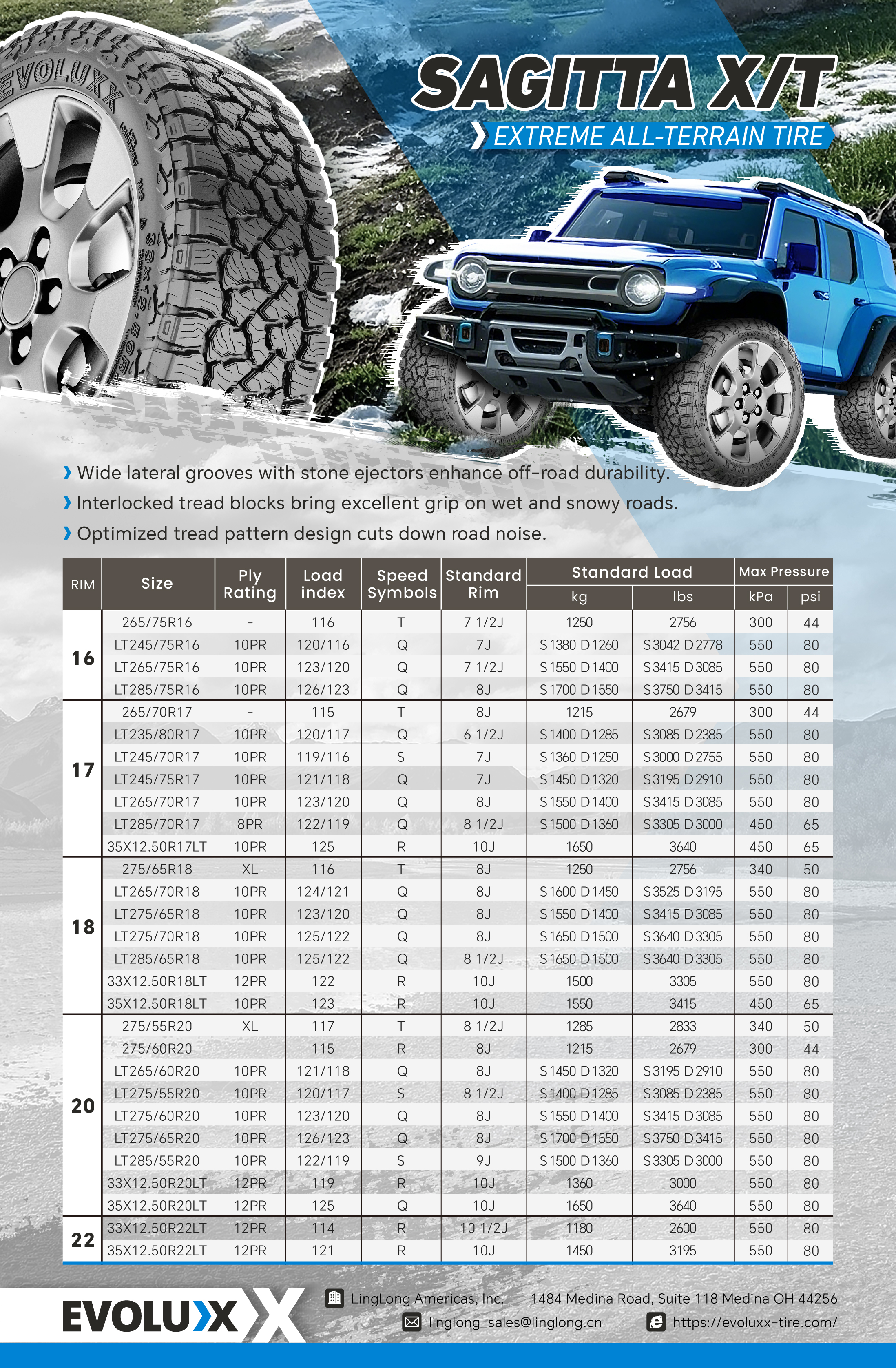

Specifications
Rim diameter Size Ply Rating Load index Speed Symbols Standard Rim Standard Load Max Pressure
kg 1bs kPa psi
16 265/75R16   116 T 7.5J 1250 2756 300 44
LT245/75R16 10PR 120/116 Q 7J S1380 D 1260 S 3042 D 2778 550 80
LT265/75R16 10PR 123/120 Q 7.5J S1550 D1400 S3415 D 3085 550 80
LT285/75R16 10PR 126/123 Q 8J S1700 D 1550 S 3750 D 3415 550 80
17 265/70R17   115 T 8J 1215 2679 300 44
LT235/80R17 10PR 120/117 Q 6.5J S1400 D 1285 S3085 D 2385 550 80
LT245/70R17 10PR 119/116 S 7J S1360 D1250 S 3000 D 2755 550 80
LT245/75R17 10PR 121/118 Q 7J S1450 D 1320 S 3195 D 2910 550 80
LT265/70R17 10PR 123/120 Q 8J S1550 D 1400 S3415 D 3085 550 80
LT285/70R17 8PR 122/119 Q 8.5J S1500 D1360 S 3305 D 3000 450 65
35X12.50R17LT 10PR 125 R 10J 1650 3640 450 65
18 275/65R18 XL 116 T 8J 1250 2756 340 50
LT265/70R18 10PR 124/121 Q 8J S1600 D1450 S 3525 D 3195 550 80
LT275/65R18 10PR 123/120 Q 8J S1550 D1400 S3415 D 3085 550 80
LT275/70R18 10PR 125/122 Q 8J S 1650 D 1500 S 3640 D 3305 550 80
LT285/65R18 10PR 125/122 Q 8.5J S 1650 D 1500 S 3640 D 3305 550 80
33X12.50R18LT 12PR 122 R 10J 1500 3305 550 80
35X12.50R18LT 10PR 123 R 10J 1550 3415 450 65
20 275/55R20 XL 117 T 8.5J 1285 2833 340 50
275/60R20   115 R 8J 1215 2679 300 44
LT265/60R20 10PR 121/118 Q 8J S1450 D 1320 S 3195 D 2910 550 80
LT275/55R20 10PR 120/117 S 8.5J S1400 D 1285 S3085 D 2385 550 80
LT275/60R20 10PR 123/120   8J S1550 D1400 S3415 D 3085 550 80
LT275/65R20 10PR 126/123 Q 8J S 1700 D 1550 S 3750 D 3415 550 80
LT285/55R20 10PR 122/119 S 9J S1500 D 1360 S 3305 D 3000 550 80
33X12.50R20LT 12PR 119 R 10J 1360 3000 550 80
35X12.50R20LT 12PR 125 Q 10J 1650 3640 550 80
22 33X12.50R22LT 12PR 114 R 10.5J 1180 2600 550 80
35X12.50R22LT 12PR 121 R 10J 1450 3195 550 80
