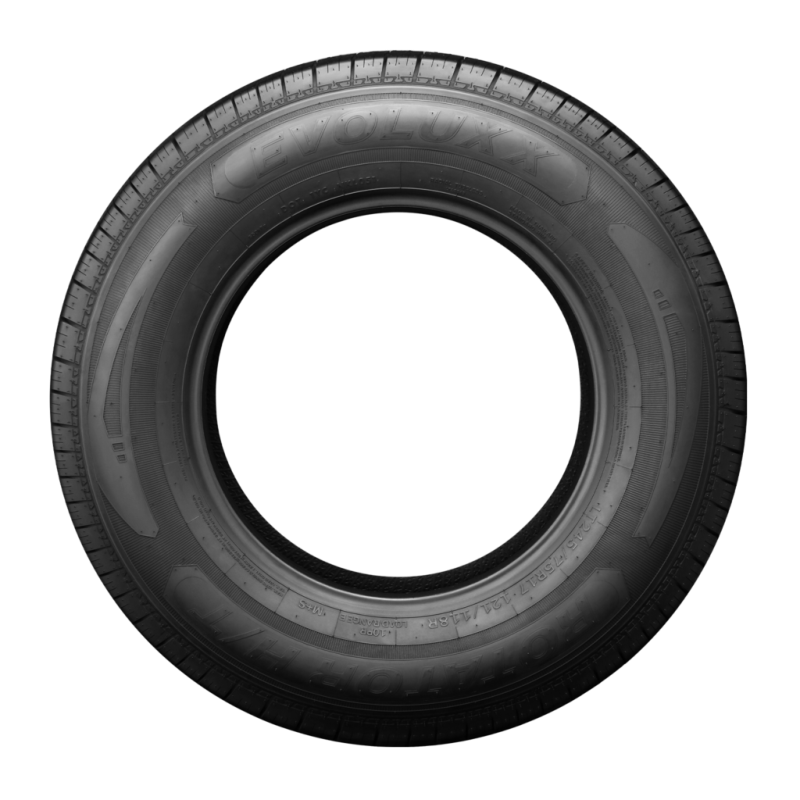

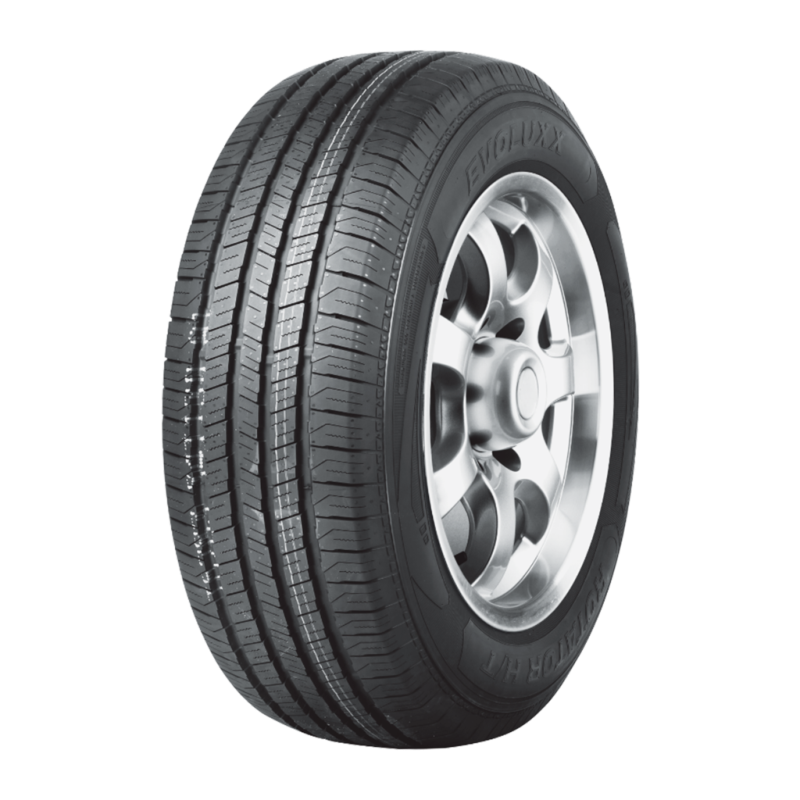

ROTATOR H/T
Highway Terrain Tire
KEY FESTURES
• Balanced Dry, Wet, and Snow Performance
• Quiet and Comfortable Ride

Balanced Dry, Wet, and Snow Performance
• Wide circumferential groove design and optimal void-to-fill ratio balance wet and wear performance
• High-density linear and zigzag siping design improves handling and reduces irregular wear
• The new generation of modified SSBR tread formula significantly improves the fuel economy and wet grip of the tire, and greatly improves the driving safety in rainy conditions


Quiet and Comfortable Ride
• Multiple variable pitch design optimizes pitch ratio and alignment to reduce noise



Specifications
Rim Size Ply Rating Load Index Speed Symbols Standard Rim Standard Load(kg) Standard Load(lbs) Max Pressure(kPa) Max Pressure(psi)
15 235/75R15 XL   109 T 6 1/2J 1030 2271 340 50
15 31X10.50R15LT 6PR 109 R 8 1/2J 1030 2270 350 50
16 225/70R16   103 T 6 1/2J 875 1929 300 44
16 245/75R16   111 T 7J 1090 2403 300 44
16 255/70R16   111 T 7 1/2J 1090 2403 300 44
16 265/75R16   116 T 7 1/2J 1250 2756 300 44
16 LT215/85R16 10PR 115/112 S 6J D1120 S1215 D2470 S2680 550 80
16 LT225/75R16 10PR 115/112 S 6J D1120 S1215 D2470 S2680 550 80
16 LT235/85R16 10PR 120/116 R 6 1/2J D1260 S1380 D2778 S3042 550 80
16 LT245/75R16 10PR 120/116 R 7J D1260 S1380 D2778 S3042 550 80
16 LT265/75R16 10PR 123/120 R 7 1/2J D1400 S1550 D3085 S3415 550 80
17 235/65R17   104 T 7J 900 1984 300 44
17 245/70R17   110 T 7J 1060 2337 300 44
17 265/65R17   112 T 8J 1120 2469 300 44
17 265/70R17   115 T 8J 1215 2679 300 44
17 275/65R17   115 S 8J 1215 2679 300 44
17 285/65R17   116 S 8 1/2J 1250 2756 300 44
17 LT235/80R17 10PR 120/117 R 6 1/2J D1285 S1400 D2835 S3085 550 80
17 LT245/75R17 10PR 121/118 R 7J D1320 S1450 D2910 S3195 550 80
17 LT265/70R17 10PR 121/118 R 8J D1320 S1450 D2910 S3195 550 80
18 LT265/70R18 10PR 124/121 R 8J D1450 S1600 D3195 S3525 550 80
18 LT275/65R18 10PR 123/120 S 8J D1285 S1550 D2835 S3415 550 80
18 LT275/70R18 10PR 125/122 S 8J D1400 S1650 D3085 S3640 550 80
20 265/50R20 XL   111 H 8 1/2J 1090 2403 340 50
20 275/55R20 XL   117 T 8 1/2J 1285 2833 340 50
