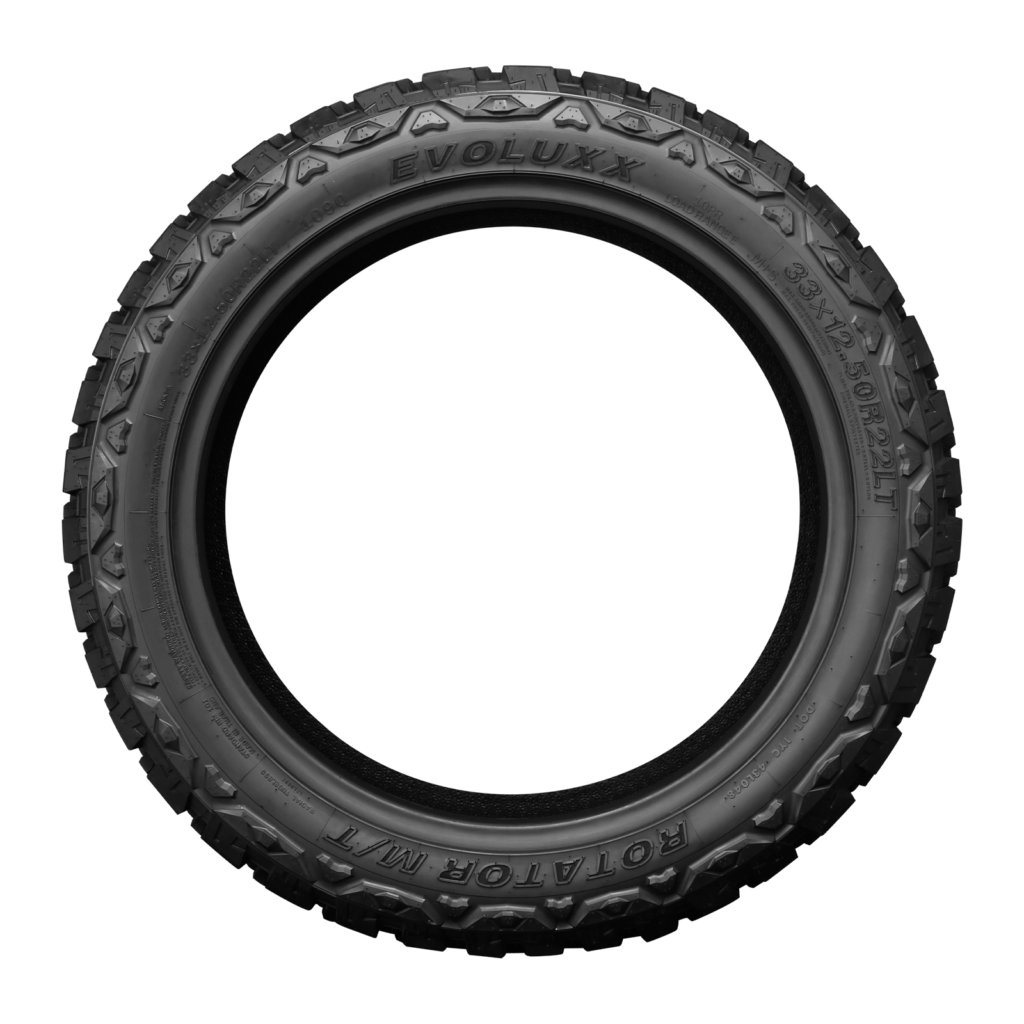

ROTATOR M/T
Mud-Terrain Tire
KEY FESTURES
• Exceptional Cut and Chip Resistance for Rugged Mud-Terrain Applications
• Excellent Mud Clearance and Off-Road Capability

Exceptional Cut and Chip Resistance for Rugged Mud-Terrain Applications
• Angled biting edges promote efficient stone ejection, helping prevent stone retention and maintain consistent off-road traction
• The high strength construction and innovative tread formula improve tire robustness in the rugged terrain conditions
• Buttress design from extended shoulder and high strength cord ply protect sidewall from puncture on rugged surfaces



Excellent Mud Clearance and Off-Road Capability
• Patented continuous groove design and optimized void-to-fill ratio ensure sufficient mud clearance capability for higher traction



Specifications
Rim Size Ply Rating Load Index Speed Symbols Standard Rim Standard Load kg Standard Load lbs Max Pressure kPa Max Pressure psi
15 LT215/75R15 6PR 100/97 Q 6J D730 S800 D1610 S1765 350 50
15 LT235/75R15 6PR 104/101 Q 6 1/2J D825 S900 D1820 S1985 350 50
15 30X9.50R15LT 6PR 104 Q 7 1/2J 900 1985 350 50
15 31*10.50R15LT 6PR 109 Q 8 1/2J 1030 2270 350 50
15 33*12.50R15LT 6PR 108 Q 10J 1000 2205 250 35
16 LT225/75R16 8PR 110/107 Q 6J D975 S1060 D2150 S2335 450 65
16 LT235/85R16 OWL 10PR 120/116 S 6 1/2J D1260 S1380 D2778 S3042 550 80
16 LT245/75R16 10PR 120/116 Q 7J D1260 S1380 D2778 S3042 550 80
16 LT265/70R16 6PR 110/107 Q 8J D975 S1060 D2150 S2335 350 50
16 LT265/75R16 10PR 123/120 Q 7 1/2J D1400 S1550 D3085 S3415 550 80
16 LT285/75R16 10PR 126/123 Q 8J D1550 S1700 D3415 S3750 550 80
16 LT305/70R16 10PR 124/121 Q 9J D1450 S1600 D3195 S3525 450 65
16 LT315/75R16 10PR 127/124 Q 8 1/2J D1600 S1750 D3525 S3860 450 65
17 LT235/80R17 10PR 120/117 Q 6 1/2J D1285 S1400 D2835 S3085 550 80
17 LT265/70R17 10PR 121/118 Q 8J D1320 S1450 D2910 S3195 550 80
17 LT285/70R17 10PR 121/118 Q 8 1/2J D1320 S1450 D2910 S3195 550 80
17 LT305/70R17 8PR 119/116 Q 9J D1250 S1360 D2755 S3000 450 65
17 33X12.50R17LT 10PR 120 Q 10J 1400 3085 550 80
17 35X12.50R17LT 10PR 121 Q 10J 1450 3195 550 80
17 37X13.50R17LT 10PR 121 Q 10J 1450 3195 550 80
18 LT275/70R18 10PR 125/122 Q 8J D1500 S1650 D3305 S3640 550 80
18 33X12.50R18LT 10PR 118 Q 10J 1320 2910 450 65
18 33X12.50R18LT 12PR 122 Q 10J 1500 3305 550 80
18 35X12.50R18LT 10PR 123 Q 10J 1550 3415 550 80
20 LT275/55R20 10PR 120/117 Q 8 1/2J D1285 S1400 D2835 S3085 550 80
20 LT285/55R20 10PR 122/119 Q 9J D1360 S1500 D3000 S3305 550 80
20 LT285/65R20 10PR 127/124 Q 8 1/2J D1600 S1750 D3525 S3860 450 65
20 LT305/55R20 10PR 121/118 Q 9 1/2J D1320 S1450 D2910 S3195 450 65
20 33X12.50R20LT 10PR 114 Q 10J 1180 2600 450 65
20 33X12.50R20LT 12PR 119 Q 10J 1360 3000 550 80
20 35X12.50R20LT 10PR 121 Q 10J 1450 3195 550 80
20 35X12.50R20LT 12PR 125 Q 10J 1650 3640 550 80
20 37X13.50R20LT 10PR 127 Q 11J 1750 3860 550 80
20 37X13.50R20LT 12PR 128 Q 11J 1800 3970 550 80
22 33X12.50R22LT 10PR 109 Q 10J 1030 2270 450 65
22 33X12.50R22LT 12PR 114 Q 10J 1180 2600 550 80
22 35X12.50R22LT 10PR 117 Q 10J 1285 2835 550 80
22 35X12.50R22LT 12PR 121 Q 10J 1450 3195 550 80
22 37X13.50R22LT 10PR 123 Q 11J 1550 3415 550 80
22 37X13.50R22LT 12PR 128 Q 11J 1800 3970 550 80
24 37X13.50R24LT 10PR 120 Q 11J 1400 3085 550 80
24 37X13.50R24LT 12PR 124 Q 11J 1600 3525 550 80
26 37X13.50R26LT 10PR 114 Q 11J 1180 2600 450 65
