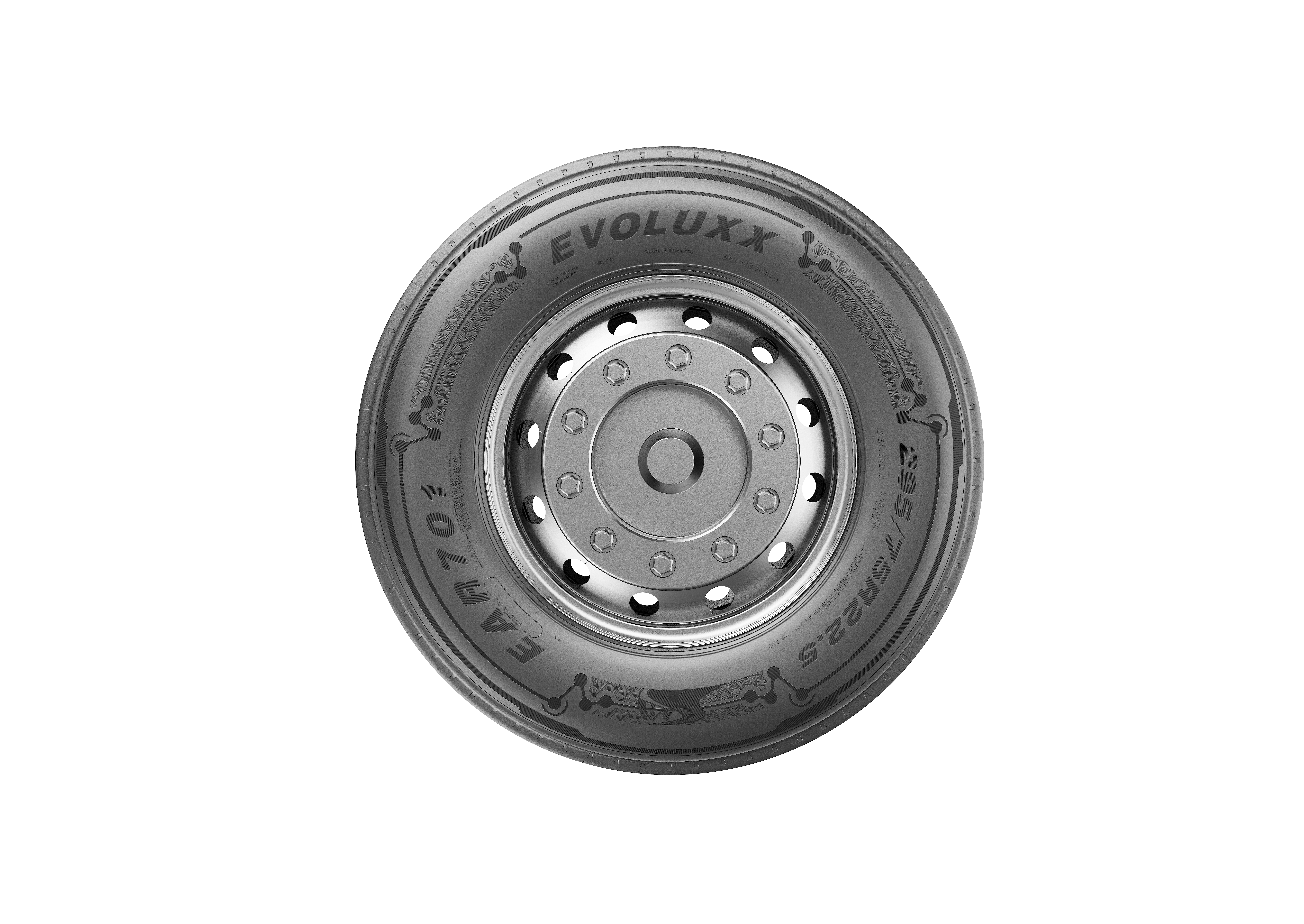

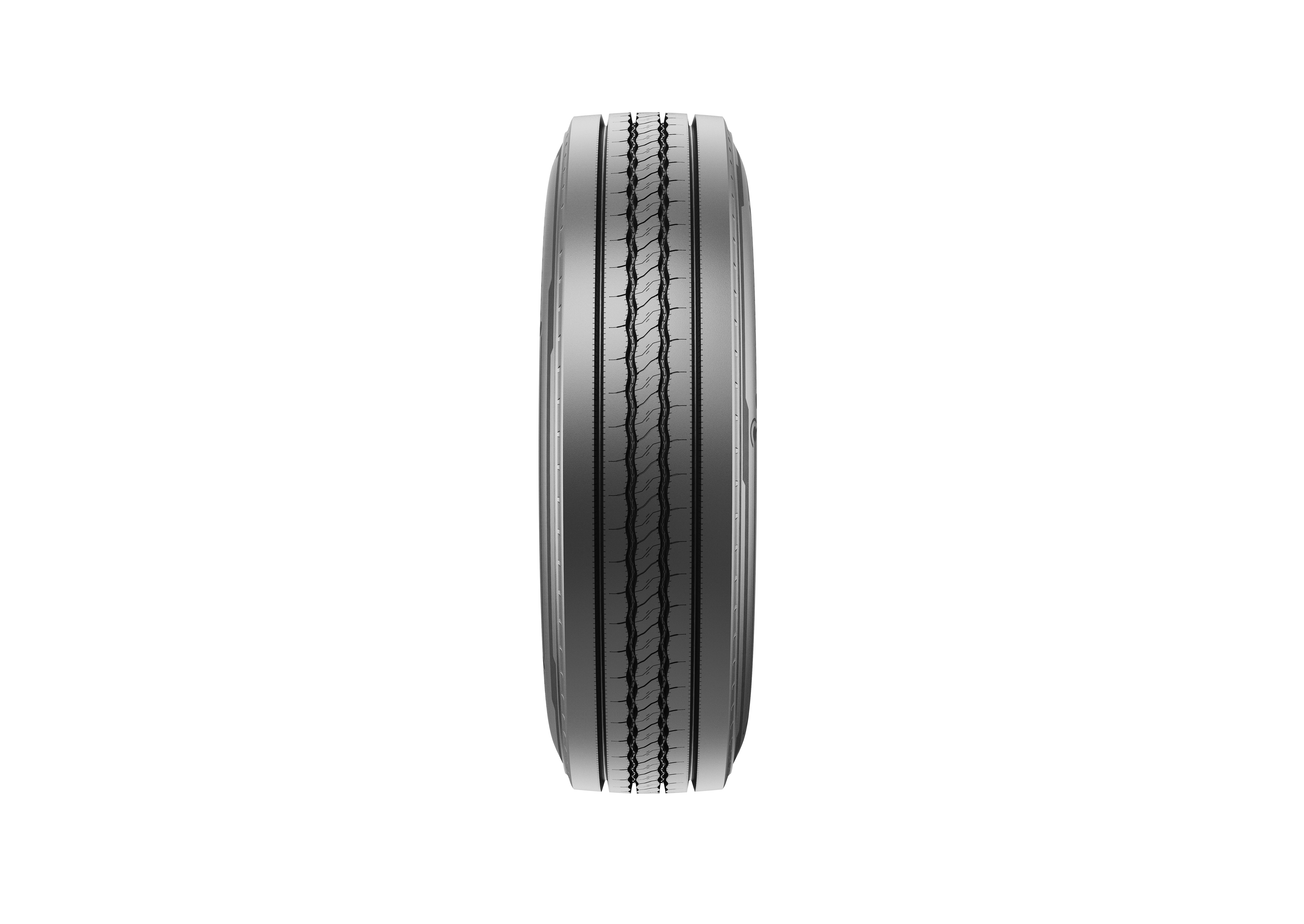

EAR701
REGIONAL ALL-POSITION
KEY FESTURES

Excellent durability
-Wide shoulder ribs reduce shoulder step wear
-Optimized the footprint for long and even wear
-New structure, ultra-high strength wire and strong carcass materials  help promote  tire durability and provide tire retreadability


Excellent driving performance
-A combination of 4 wavy and straight groove provide outstanding traction and drainage performance
-Each size is manufactured with a specially tread depth to meet a greater range of application


New generation of products features an all-new structure and appearance design



Specifications



Rim

Load Index / Speed Symbol PR Load Range Max Load and Mix Air (lbs&psi) Overall Diameter in inches Section Width in inches Tread Depth (in 32nds)
Dual Single
lbs psi lbs psi

295/75R22.5

146/143L

16

H

6005 120 6610

120

39.93

11.54

21
