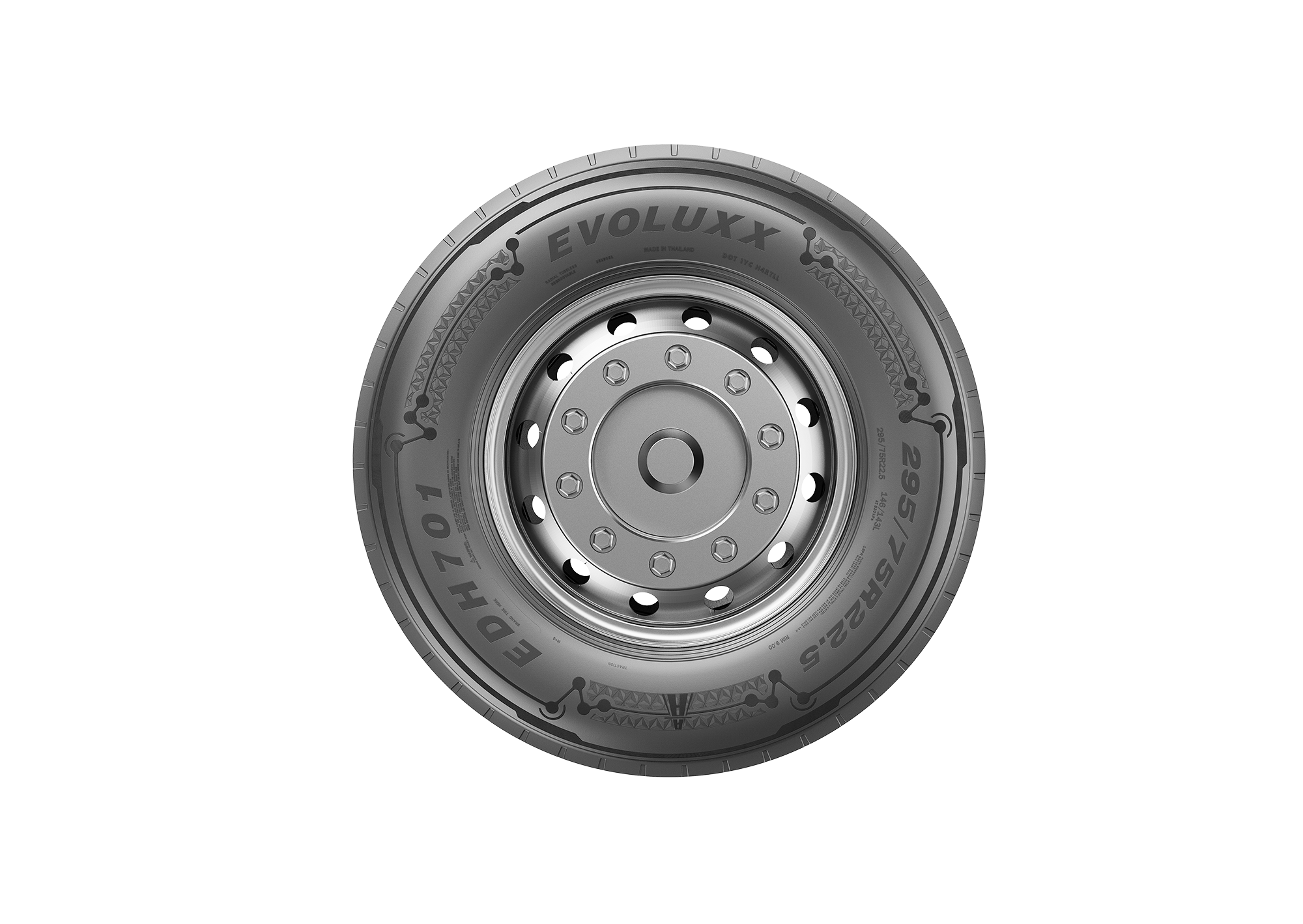

EDH701
LONG-HAUL DRIVE
KEY FESTURES

Excellent durability
-Continuous shoulder design distributes weight and
torque uniformly to fight irregular wear for long
tread life and over even wear
-Optimized the footprint for long and even wear
-New structure, ultra-high strength wire and strong
carcass materials  help promote  tire durability and
provide tire retreadability

Excellent driving performance

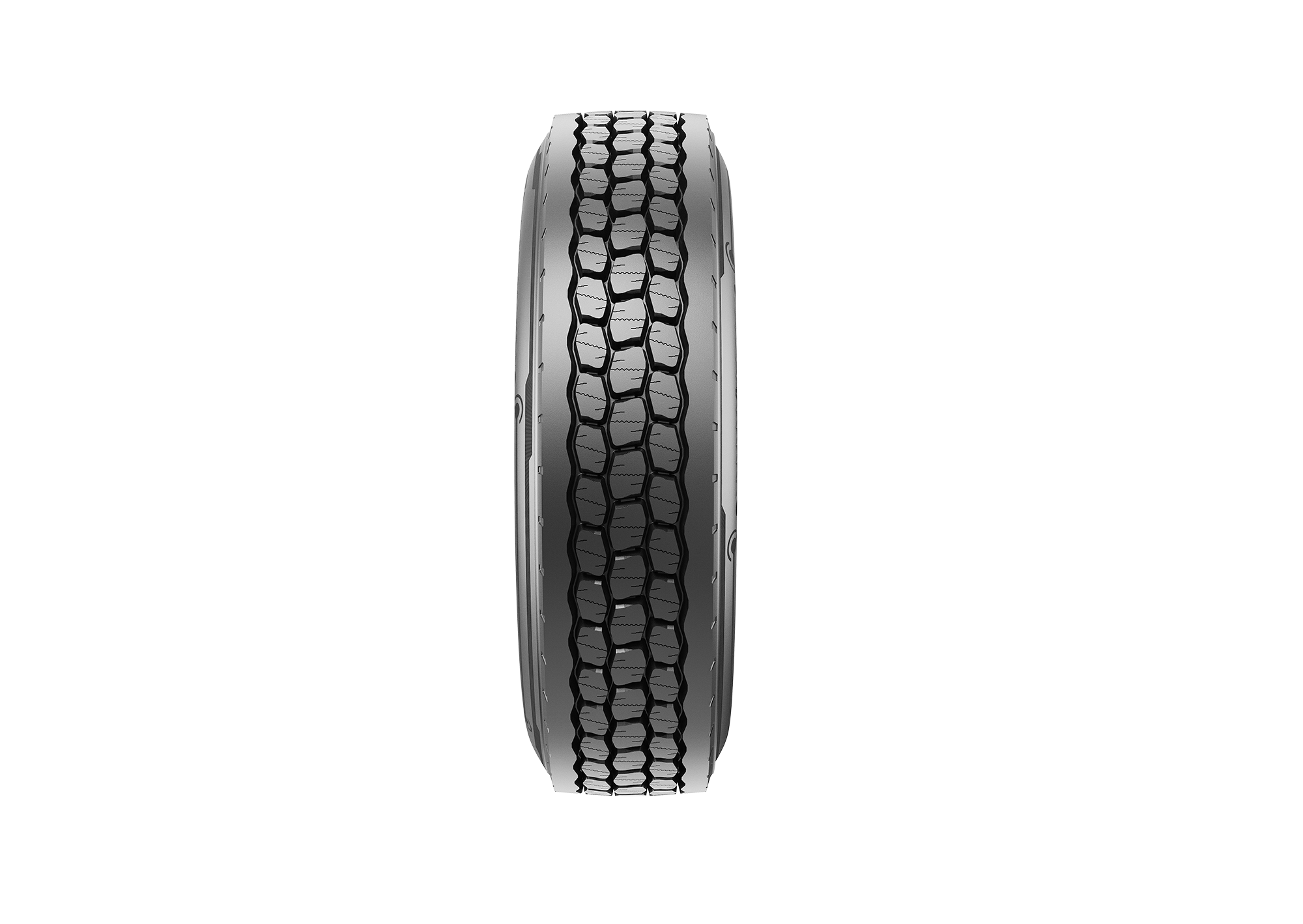

-Utilizes high rigidity tread pattern for long, even
wear and low rolling resistance
-Low rolling resistance, more fuel saving

New generation of products features an all-new structure and appearance design

Specifications



Size Load index&Speed symbols PR Load Range Max load and Max Air (lbs&psi) Overall Diameter in inches Section Width in inches Tread Depth (in 32nds)
Dual Single
lbs psi lbs psi
295/75R22.5 146/143L 16 H 6005 120 6610 120 40.24 11.54 26
