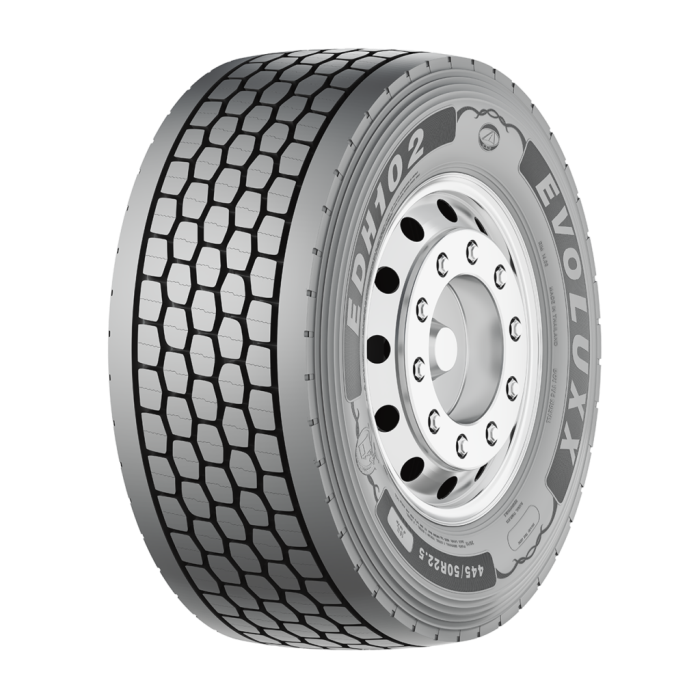

EDH102
DRIVE POSITION
KEY FESTURES

•  Closed shoulder design to ensure even weight and torque distribution, prevent irregular wear, and achieve prolonged tread life and uniform wear


• Six-groove tread pattern with high stiffness for longer mileage, even wear and low rolling resistance


• 3D interlocking sipe design for higher tread stiffness


• Robust casing material for improved durability and retreadability
Specifications
Size Load index&Speed symbols PR Load Range Rim Max load and Max Air (lbs&psi) Overall Diameter in inches Section Width in inches Revolution per mile Tread Depth (in 32nds)
Dual Single
lbs psi lbs psi
445/50R22.5 161L 20 L 14.00 - - 10200 120 40.09 17.52 522 23
